Hardware ecosystem

Every board in the AXON system

Masters, RFID/NFC readers, output nodes and communication modules

Choose a master, connect your readers and add outputs where you need them. Explore the modular Master Premium and Master Lite family alongside cabin controllers, relay boards and communication modules for elevators, doors and garages.

Featured controllerPremium
AXON Master Premium access controller with two isolated CAN ports
AXON Master Premium

Two isolated CAN ports. One point of control.

The catalogue

Find the boards for your installation

Master Premium, Master Lite, Node8, Reader EV3 and LTE lead the catalogue, with interactive 3D presentations on their product pages. Browse the full range below or filter by function.

AXON Master Premium
AXON · 3DReady for use

AXON Master Premium

Access Control Controller

Two isolated CAN channels, Ethernet and EMI filtering for modular access control across elevators, doors and shared entrances.

2 × CANEMI / ESDEthernet
View AXON Master Premium
AXON Master Lite
AXON · 3DReady for use

AXON Master Lite

Access Control Controller

A compact access controller with four SSR outputs, Ethernet, Wi-Fi and a Wiegand input. Add CAN nodes when your installation needs more outputs.

4 × SSRWi-Fi / EthernetCAN
View AXON Master Lite
AXON Node8
AXON · 3DReady for use

AXON Node8

SSR Expansion Node

Add eight SSR control outputs over CAN, with an indicator for every channel. Extend access control to more floor buttons and access points.

8 × SSRCANChannel indicators
View AXON Node8
AXON Reader EV3
AXON · 3DReady for use

AXON Reader EV3

RFID/NFC Reader

CAN RFID/NFC reader designed for DESFire EV3 card authentication. Plan a complete elevator access kit with configured cards, a master and output nodes.

RFID / NFCCANElevator access
View AXON Reader EV3
AXON LTE
AXON · 3DReady for use

AXON LTE

Cellular Communication Module

Cellular communication for compatible AXON master configurations, with a SIM and antenna connection. An option for installations that need an LTE link.

LTESIMAntenna connection
View AXON LTE
AXON ICM-GE
ICM-GEReady for use

AXON Master

Access Control Controller

CAN-bus access master with on-board card database. External access master for landings, entrances and doors. It holds the full card database on board, decides locally in a target under 2 ms without the cloud, and talks to per-floor nodes over two independent 250 kbit/s CAN buses.

2× CAN ports 250 kbit/sOffline decision < 2 ms targetEthernet + LTE on Axon Network
View AXON ICM-GE

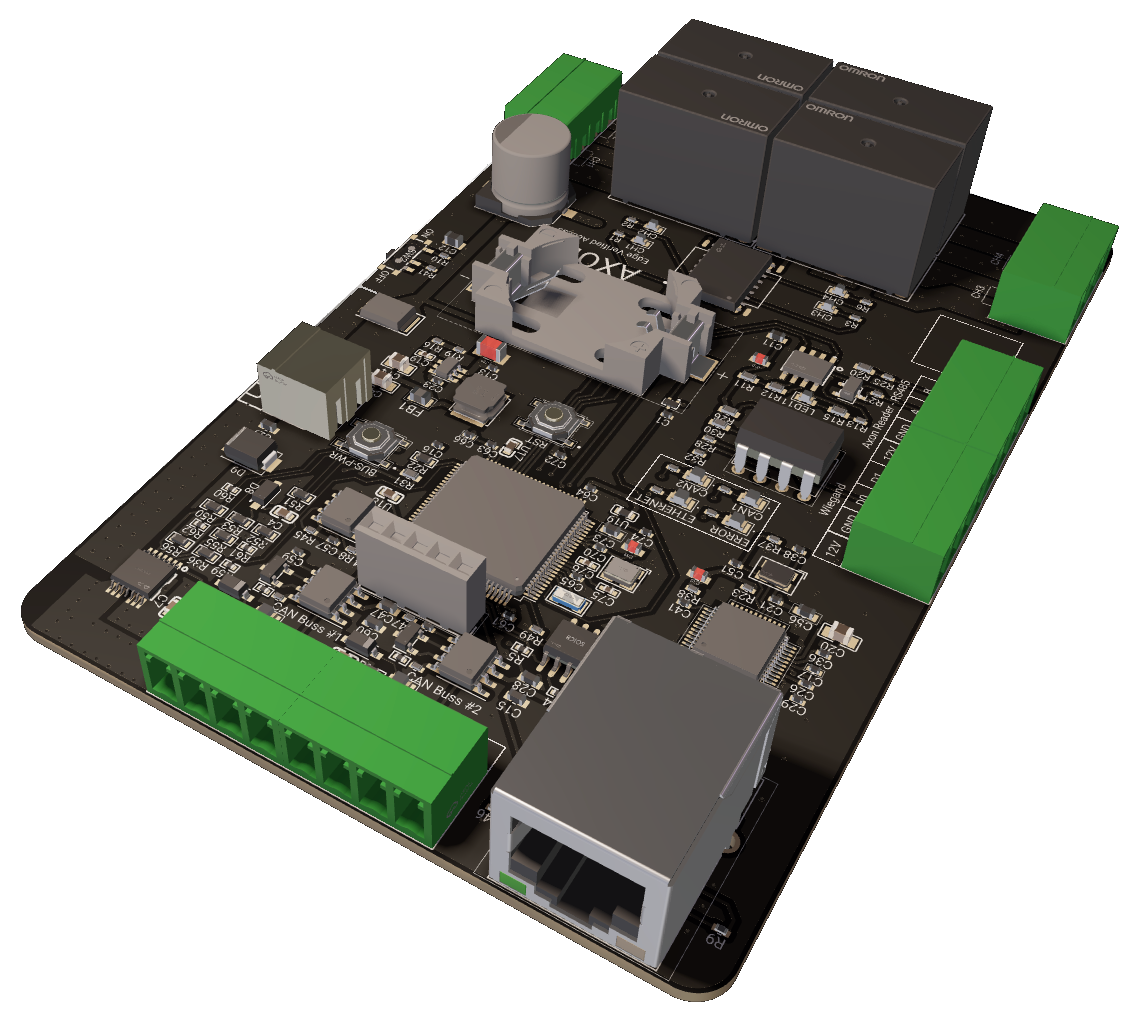

AXON ICM-E
ICM-EReady for use

AXON Master E

Access Control Controller

Wired access master with four relays and readers on board. An Ethernet access controller with four local relay contacts, reader interfaces and two CAN connections for compatible expansion. Select the firmware, readers, output interfaces and power arrangement for the building.

4 relay outputs on boardRS-485 + Wiegand reader inputs2× CAN ports Node expansion
View AXON ICM-E

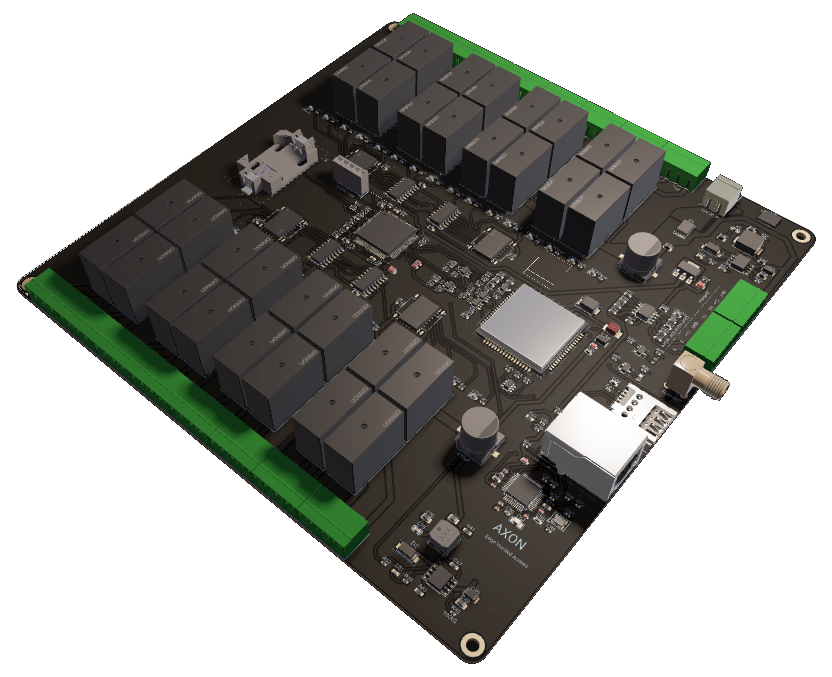

AXON CCU-32
CCU-32Ready for use

AXON Smart Access

Cabin Control Unit

Cabin master with 32 relay outputs and an offline decision. The master controller inside the elevator cabin. It reads encrypted card events from the in-cabin reader, decides locally which floors are allowed and pulses one relay per floor button — with no server in the critical path.

32 relay outputsAES-128 encrypted RS-485 busEthernet + LTE-M / NB-IoT
View AXON CCU-32
AXON Node
NodeReady for use

AXON Node

Floor Access Node

Per-floor RS-485 to CAN bridge that never decides alone. Per-floor bridge between the landing reader and the AXON Master: it takes the reader's authenticated card event over RS-485, forwards it on the encrypted CAN backbone, and pulses two relays only when the master says so.

CAN 2.0B 250 kbpsEncrypted CAN connection2 relay outputs
View AXON Node
AXON URX-Secure
URX-SecureReady for use

AXON Reader

Encrypted RFID Reader

DESFire EV3 reader with an authenticated RS-485 link. A 13.56 MHz DESFire EV3 reader that makes the card prove its key with AES-128 before it reports anything, then hands the event to the AXON master over an encrypted RS-485 link. One board, one firmware — in the cabin or at every landing.

DESFire EV3 AES-128 card authRS-485 half-duplex 115200 bps 8N1Protected reader connection
View AXON URX-Secure
AXON AMS (W2R-N)
AMS (W2R-N)Ready for use

AXON RS485 Module

Wiegand → RS-485 Converter

Wiegand 26/34 reader onto the AXON RS-485 bus. A small board that sits behind an existing Wiegand 26/34 reader and forwards each credential as an addressed message on the AXON RS-485 bus. It exists so a retrofit can keep working readers and replace only the panel and the wiring.

Wiegand 26/34 inputAddressed RS-485 bus outOptional Wiegand pass-through
View AXON AMS (W2R-N)
AXON ICM-LR
ICM-LRReady for use

AXON Long-Range

LoRa Communication Module

Long-range LoRa master for distributed sites. A LoRa master for distributed access points where cabling between locations is difficult. The 500 m, single-segment configuration connects remote nodes, with RS-485 for local readers and relays. A site survey establishes the practical range.

LoRa 500 m configurationLocal RS-485 BUS per siteEnd-to-end encrypted
View AXON ICM-LR
ELM-GEReady for use

AXON Elevator Master

Elevator Master Module

Elevator master with direct controller integration. The elevator master tier of the AXON platform. It validates a credential against stacked access policies and sends a real destination call to the elevator controller — not a simulated button press.

Direct controller integrationEthernet + GSM dual uplinkRS-485 bus to readers and modules
View AXON ELM-GE
AXON RBN-2
RBN-2Ready for use

AXON Relay

Dual-Relay Expansion

Two isolated relays on the RS-485 bus, next to the load. A compact RS-485 bus node with two independent industrial relays. It puts the switching contact within a metre of the door, gate or light it controls, so one twisted pair replaces a building's worth of load wiring back to the panel.

2× NO/NC relays 5 A @ 30 V DCRS-485 bus individual addressLogically isolated channels
View AXON RBN-2
AXON SC-E
SC-EReady for use

AXON Relay Add-on

Dual-Relay Add-On

Two more relays for an existing AXON installation. A two-relay add-on for an existing AXON access installation. Each relay exposes NO and NC contacts, is commanded over the AXON BUS independently or together, and joins the bus without changing the main controller.

2 relays NO/NC eachAXON BUS RS-485 A/BIndependent or shared commanding
View AXON SC-E
AXON SSR-32
SSR-32Ready for use

AXON Solid-State Relay

32-Channel SSR I/O

32 solid-state outputs on the AXON RS-485 bus. A 32-channel solid-state output board for the AXON RS-485 bus. It exists for cabinets that switch many loads, often, for years — no contacts to wear, and one bus message for a whole channel group.

32 solid-state channelsAddressed RS-485 bus nodePer-channel + group commands
View AXON SSR-32
PBC-BridgeIn development

AXON Push-Button Bridge

Retrofit Bus Bridge

Push-button and legacy signal converter to AXON BUS. A converter for connecting suitable elevator push-button lines and existing controller signals to AXON BUS events. It adds an access-control interface alongside the elevator controller, with compatibility assessed for the installation.

Button lines to AXON BUSRS-485 physical layer12 or 24 V DC input
View AXON PBC-Bridge
SBT-TRFIn development

AXON Smart Touch

Touch + Biometric Panel

Touch, RFID and fingerprint in one access panel. A panel design combining capacitive touch, RFID and fingerprint for cabin, landing or entrance applications. The supported authentication workflow and master connection are selected for the installation.

Capacitive touch faceRFID + fingerprintMulti-factor in the panel
View AXON SBT-TRF
How they fit together

Two architectures, different product roles

Concentrated cabin control

CCU-32 groups 32 floor-button outputs near the elevator cabin panel. It suits projects where the signals and reader are concentrated in that location. The selected elevator interface determines the final wiring. Cabin controller variants with other output counts are also available.

Modular master

Master Lite has four local SSR outputs, Wi-Fi, Ethernet, CAN and Wiegand. Master Premium has two local SSR contacts, two isolated CAN branches, Ethernet and onboard LTE. A modular master may sit in the cabin or elsewhere in the building. An exterior master can connect landings, entrances, garages, barriers and cabin nodes on shared compatible lines.

Output and reader nodes

Node8 adds eight SSR signal outputs. Reader EV3 provides RFID/NFC reading over CAN. Select compatible devices and firmware for the required layout; one node can provide several outputs, so node and relay counts are different. Other node variants provide more ports according to the model.

Management platform

Manage card permissions, access schedules, apartment payments and maintenance records in one platform. Changes synchronize in real time across connected masters. Administrators can also disable a selected reader or subordinate unit remotely, without disabling every access point in the building.

The current modular system supports up to 240 subordinate devices, including readers and nodes with several outputs, and up to 1,000,000 cards per master. Device count is separate from output or door count. Cable topology, power distribution and compatible hardware still determine the installation layout; older product pages retain their own model-specific capacities. See how AXON works for the complete access, payment and management workflow.
Choosing boards

Which boards does my building need?

Which AXON system should I choose for an elevator?
AXON offers two configurations. Concentrated cabin controllers group many floor-button outputs in one place; CCU-32 is the 32-output model, with other output-count variants available. Alternatively, Master Lite or Premium can sit inside or outside the cabin and use compatible reader and output nodes. A master outside the cabin can serve landings, entrances, garages and parking barriers together with cabin nodes on shared compatible lines.
What is the difference between Master Lite and Premium?
Lite has four SSR outputs, Wi-Fi, Ethernet, one CAN interface and a Wiegand input, with an optional external LTE module. Premium has two SSR contacts, two isolated CAN branches with monitored node supplies, Ethernet and onboard LTE. Premium does not inherit Lite’s Wi-Fi or Wiegand input.
Can the system also control doors and garages?
Yes, an access project can include doors, garages, gates and shared areas as well as elevator floors. The authorized event must connect through the appropriate command interface, with the required lock or motor equipment and power supplies. Local SSR contacts are signal outputs, not load-power supplies.
What does a capacity of 240 slaves mean?
The current modular system supports up to 240 subordinate devices, including readers and nodes with several outputs, and up to 1,000,000 cards per master. Device count is separate from output or door count. Cable topology, power distribution and compatible hardware still determine the installation layout; older product pages retain their own model-specific capacities.
How do I get an accurate quotation?
Send the number of floors, entrances and controlled signals, the existing equipment and the planned reader positions. Hardware, installation and platform scope are priced for the configuration the site needs.
Size it for your building

Not sure which boards you need?

Tell us the floor count, entrances, doors, garages and reader positions. We will choose the controllers, expansion nodes and management configuration that fit the project.
